MINI EXCAVATOR ZA38A

Serial Number : JH7803508L01A7001

AVAILABLE NOW : Kraluv Dvur (CZ)

Kubota D17034B engine 580mm bucket with teeth Swing boom A/C Rubber Truck Auxiliary hydraulic Pipeline Heated cab One year warranty

Select Additional Options:

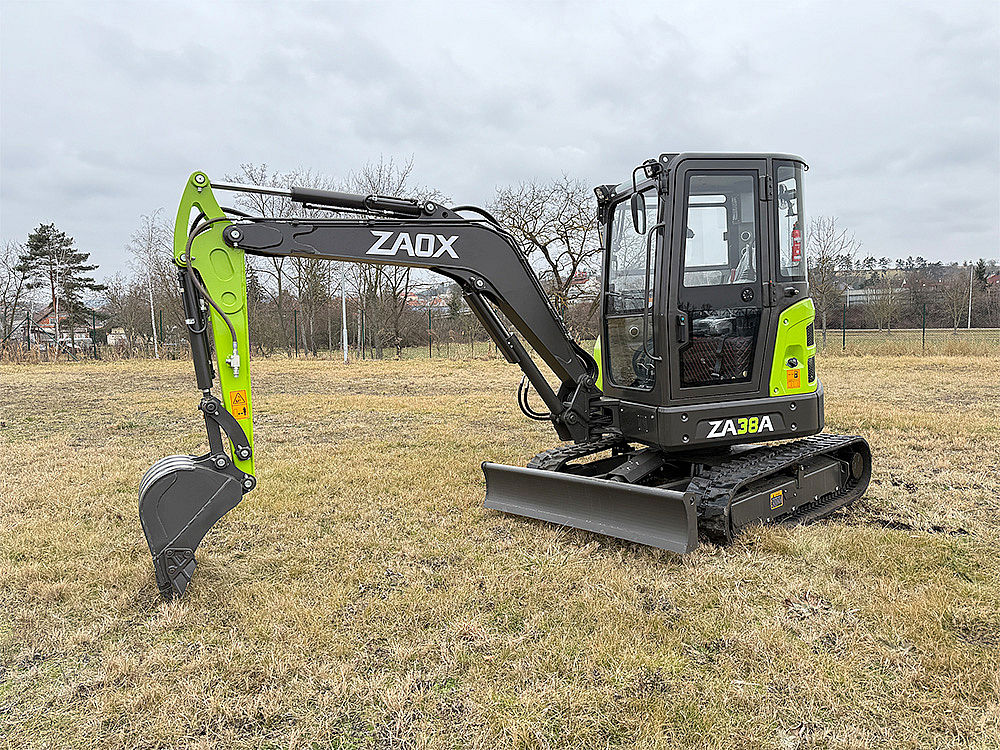

The ZA38A is an excellent hydraulic mini excavator with an operative weight of 3875 kg (around 3.9 tons). It is a no tail machine, with a max Digging Depth over 3,2 mt. The machine comes with a 580 mm Standard Bucket, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.

The ZA38A is powered by a reliable and low fuel consumption Kubota D17034B Euro V engine in combination with top notch Hydraulic Components. The Zaox Load Sensing System provide a precise control of different execution elements, good controllability and high working efficiency.

The machine has plenty of power and an enviable quality/price ratio.

Your configuration

ZA38A
Serial Number :JH7803508L01A7001 ($27,047.00)

Total Price

$27,047.00

Submit Reservation

Discount : 14.00 % OFF

discount_note_reservation

Submit the order is without obligation and it is not binding!

One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.

Machinery Size
(mm)	Total Length	4919
(mm)	Total Width	1755
(kg)	Machine Weight (with all fluids)	3800
(mm)	Cabin Height	2525
(mm)	Axle Base	1670
(mm)	Wheel (track) Distance	1420
(mm)	Minimum Ground Clearance	295
(mm)	Tail Swing Radius	870
Tech. Specifications
(㎡/mm)	Standard Bucket Capacity/Length	0.2/580
(rmp)	Swing Speed	1-11
(°)	Gradeability	30
(KN)	Max. Bucket Digging Force	30
(KN)	Max. Arm Digging Force	18
	Engine Model	KUBOTA D1703
(Kw(HP)/rpm)	Power/Revolution speed	18.2[24.4]/2200
(MPa)	System Pressure	22.5
Working Range
(mm)	Max. Digging Height	4800
(mm)	Max. Dumping Height	3406
(mm)	Max. Digging Depth	3208
(mm)	Max. Vertical Digging Depth	2957
(mm)	Max. Digging Radius	5480
(mm)	Max. Swing Radius	2530
(33)	MAx. Dozer Blade Lifting Distance	365
(mm)	MAx. Dozer Blade Cutting Distance	385
