MINI EXCAVATOR ZA20A

Serial Number : JH7802003L01A7022

AVAILABLE NOW : Kraluv Dvur (CZ)

Kubota D1105 engine 435mm bucket with teeth Swing boom Canopy Rubber Truck H/L speed Retractable rubber tracks Auxiliary hydraulic Pipeline One year warranty

Select Additional Options:

  • Extended
    Warranty

    Extended
    Warranty

    Close
    It is possible to extend the warranty by adding one year (so two years in total) or even adding two years (so three years in total). Be careful because the warranty extension is not on all parts of the machine, but only on the main ones (pump, hydraulic motors, etc.). Check the FAQ for more information about the warranty extension.
    2 years(+$949.00)
    3 years(+$1,708.00)
  • Machinery
    Accessories

    Machinery
    Accessories

    Close

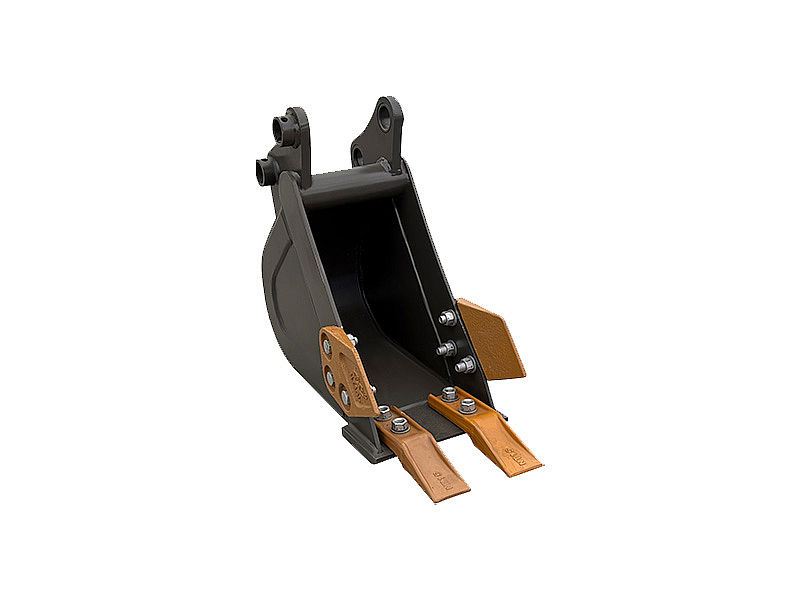

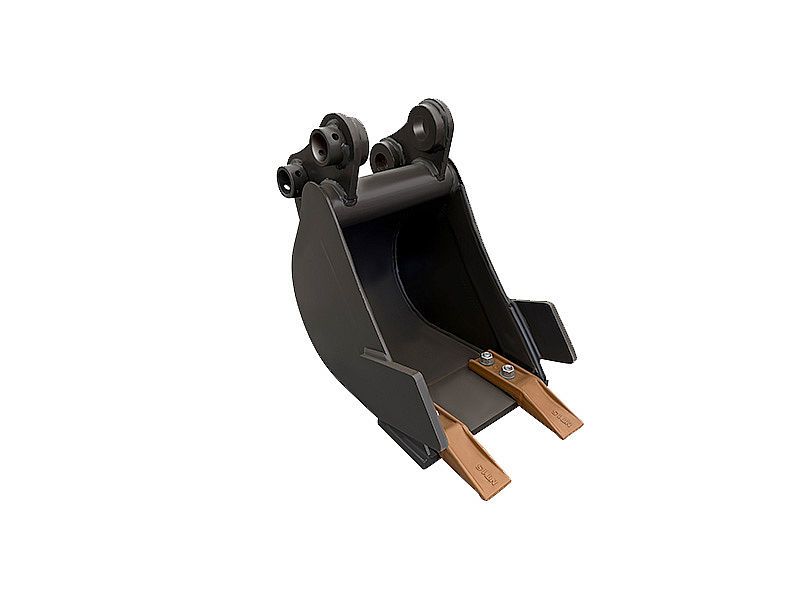

    200 mm Bucket with Teeth (+$165.00)
    260 mm Bucket with teeth (+$198.00)

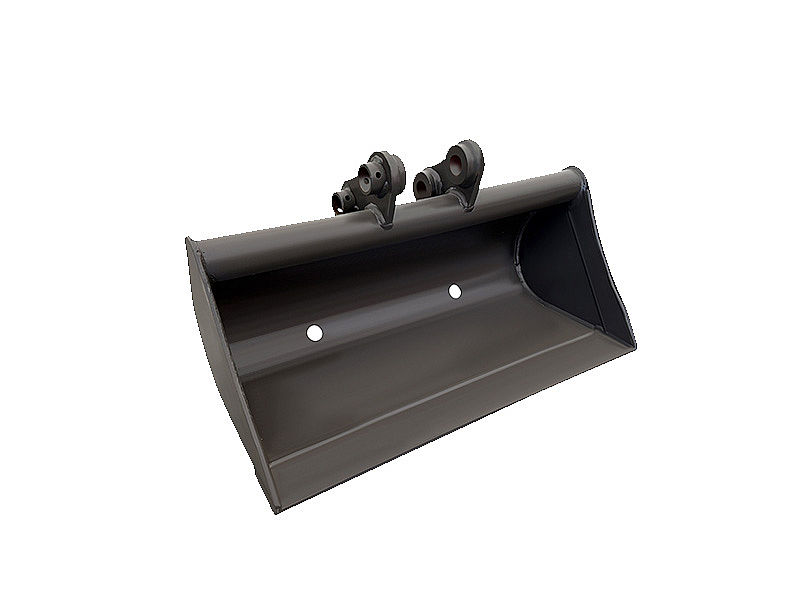

    800 mm Clean Bucket (+$330.00)

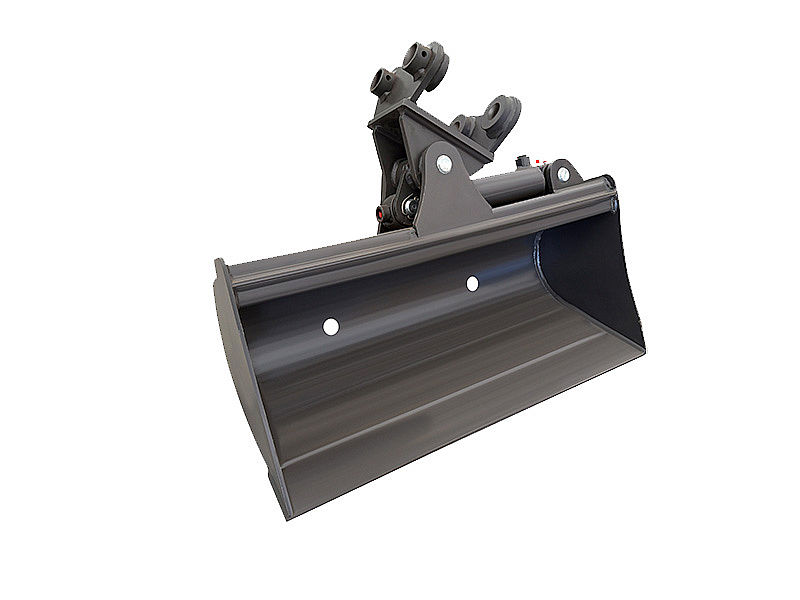

    Tilt Bucket 800mm (+$638.00)
    Mechanical quick hitch (+$380.00)

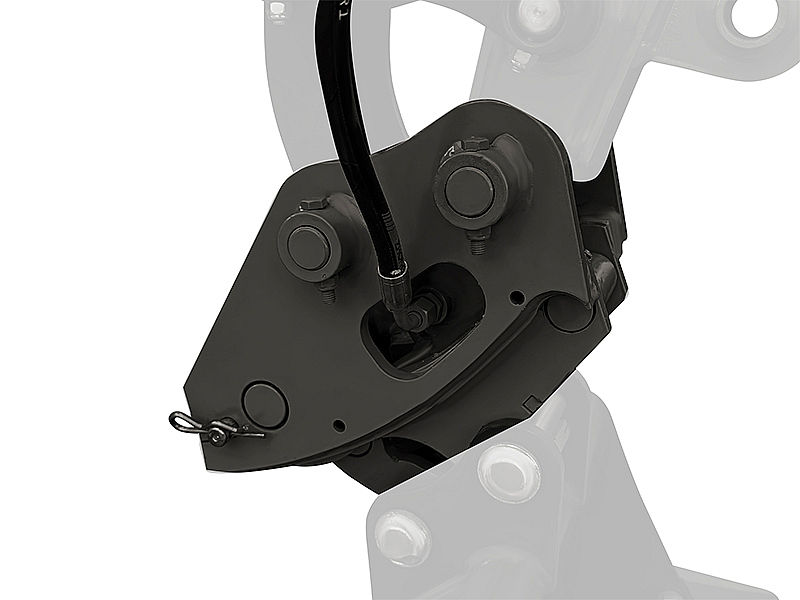

    Hydraulic Quick Hitch (+$800.00)
    Hydraulic Breaker LP129 (+$1,832.51)
    Moil/Pyramid Tool 45 mm (+$36.00)
    Cone Tool 45 mm (+$60.00)
    Chisel Tool 45 mm (+$60.00)
    Couple Hydraulic Hoses (+$75.00)
    Save Settings

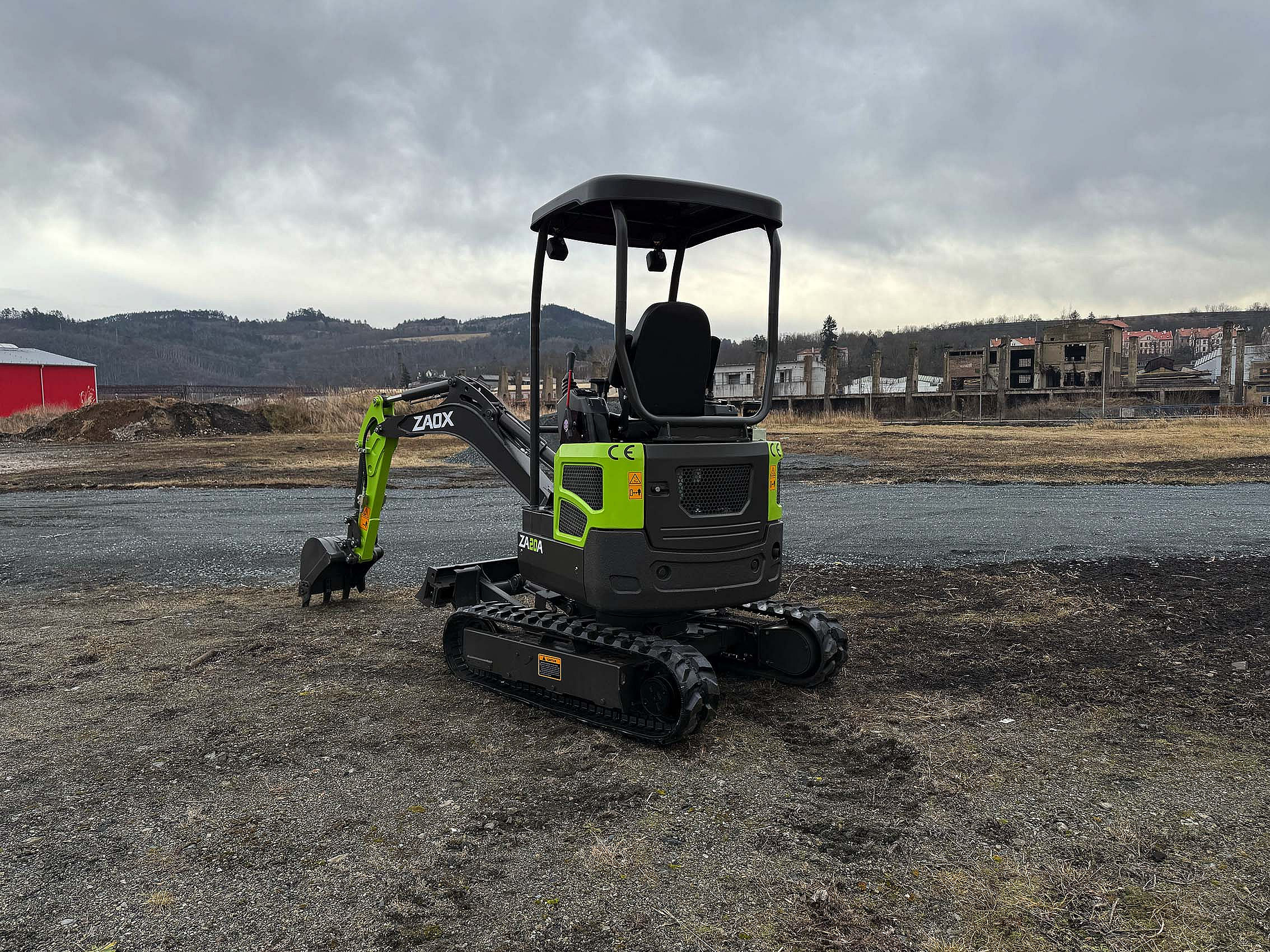

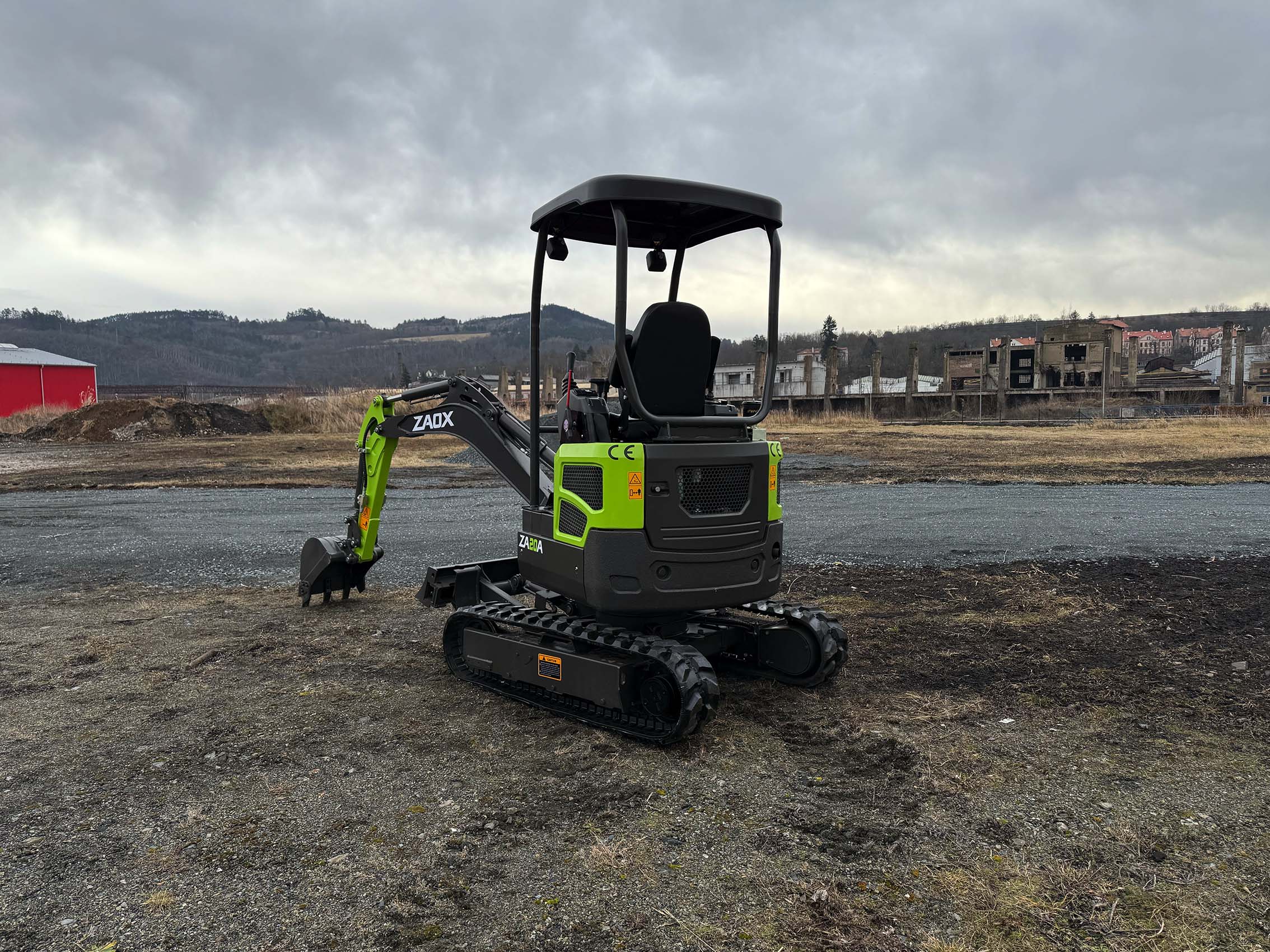

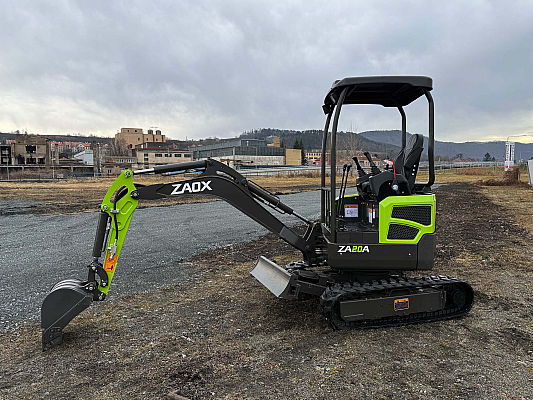

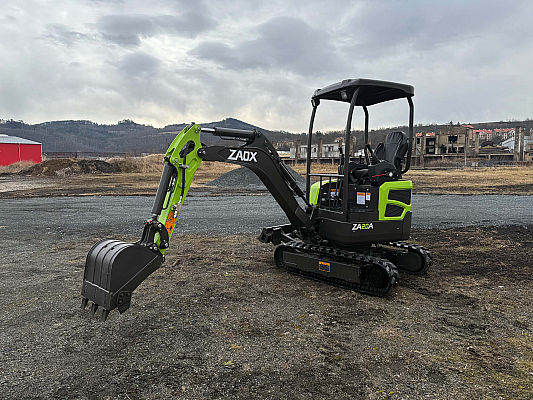

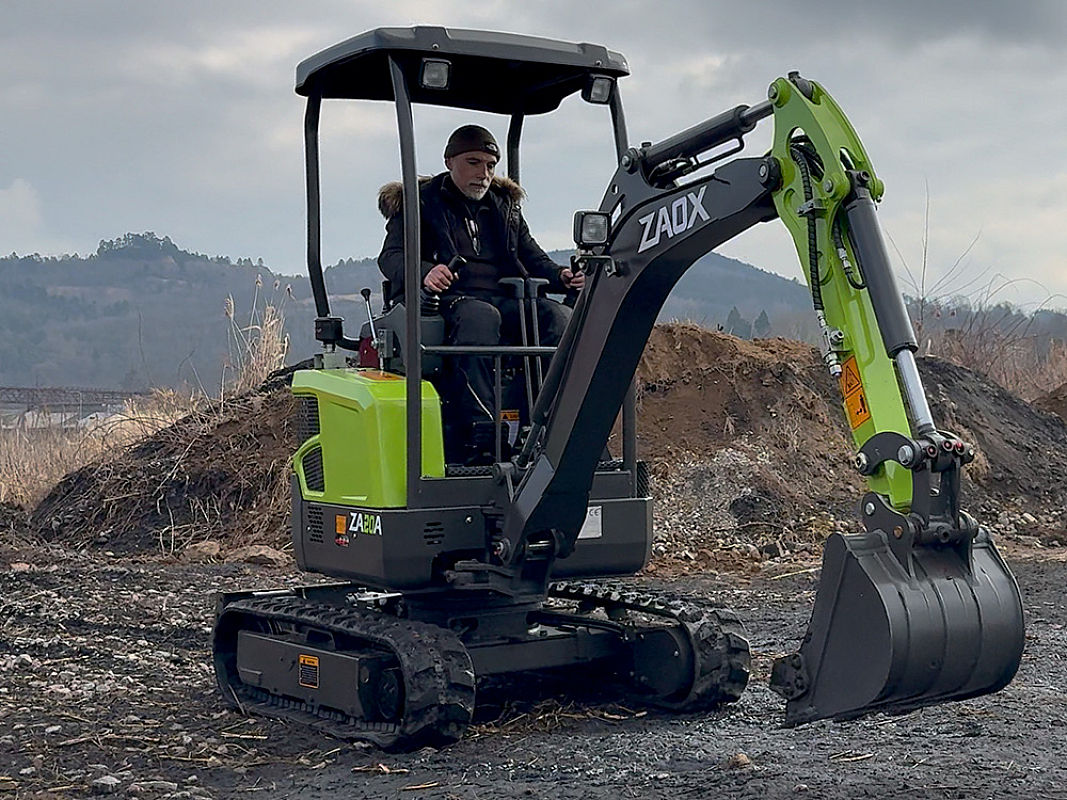

The ZA20A is an excellent hydraulic mini excavator with an operative weight of 1975 kg (around 2 tons). It is a no tail machine, with a max Digging Depth over 2,4 mt. The machine comes with a 435 mm Standard Bucket, Retractable Tracks, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard. This machine is available only with canopy (the machine is so compact, there is no space to install a cab)

The ZA20A is powered by a reliable and low fuel consumption Kubota D1105 Euro V engine in combination with top notch Hydraulic Components for a precise control of the execution elements, good controllability and high working efficiency.

The machine has plenty of power and an enviable quality/price ratio.

Your configuration

Total Price
$18,981.92 (≈$18,981.92)
ZA20A
Serial Number :JH7802003L01A7022 ($18,981.92)

Total Price

$18,981.92

Submit Reservation
Discount : 14.00 % OFF

discount_note_reservation

Submit the order is without obligation and it is not binding!

One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.

Specification 2 Image
Machinery Size
(mm) Total Length 3555
(mm) Total Width 990/1300
(mm) Track Width 230
(kg) Machine Weight (with all fluids) 1900
(mm) Canopy Height 2290
(mm) Axle Base 1230
(mm) Wheel (track) Distance 760
(mm) Minimum Ground Clearance 150
(mm) Tail Swing Radius 650
Tech. Specifications
(㎡/mm) Standard Bucket Capacity/Length 0.07/435
(rmp) Swing Speed 1-9
(°) Gradeability 35
(KN) Max. Bucket Digging Force 18
(KN) Max. Arm Digging Force 11
Engine Model KUBOTA D1105
(Kw(HP)/rpm) Power/Revolution speed 14.2[19.4]/2000
kPa (kgf/cm²) Ground pressure (without driver) 63.79 (0.65)
(MPa) System Pressure 21.5
(L) Fuel Tank Capacity 17
(L) Hydraulic Circuit Capacity 30
(L) Cooling Circuit Capacity 9
(L) Engine Oil Capacity 4.2
Working Range
(mm) Max. Digging Height 3570
(mm) Max. Dumping Height 2440
(mm) Max. Digging Depth 2400
(mm) Max. Vertical Digging Depth 2025
(mm) Max. Digging Radius 4040
(mm) Max. Swing Radius 1610
(33) MAx. Dozer Blade Lifting Distance 240
(mm) MAx. Dozer Blade Cutting Distance 270
